Jenkins setup

Keycloak

Creating a realm

Create a realm.

Clients in the realm

Create a clients like jenkins,sonar…

Here is the list of clients

Clients

Jenkins client configuration

Here is the screenshots how to set jenkins as client.

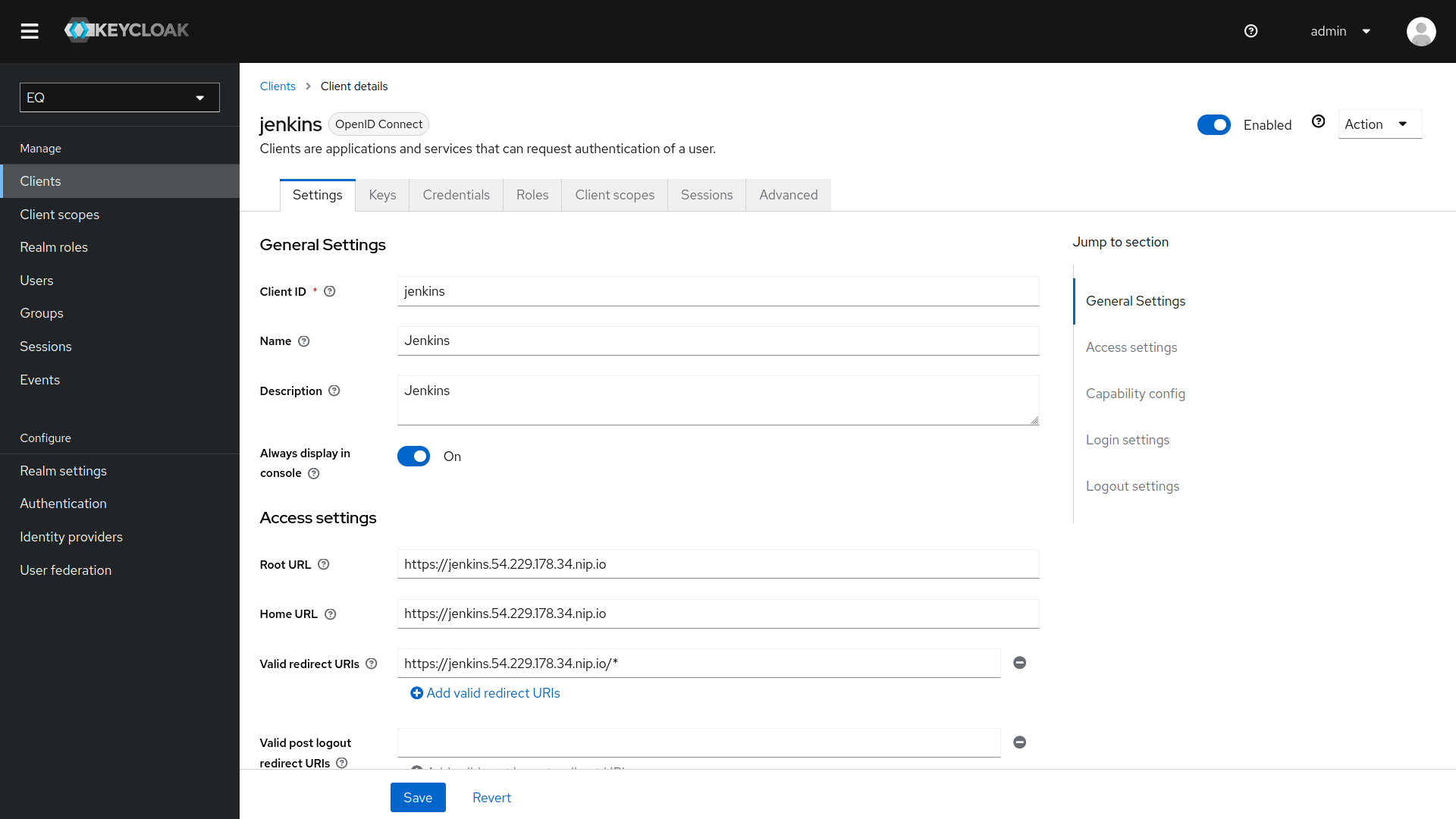

Jenkins client one

Jenkins client two

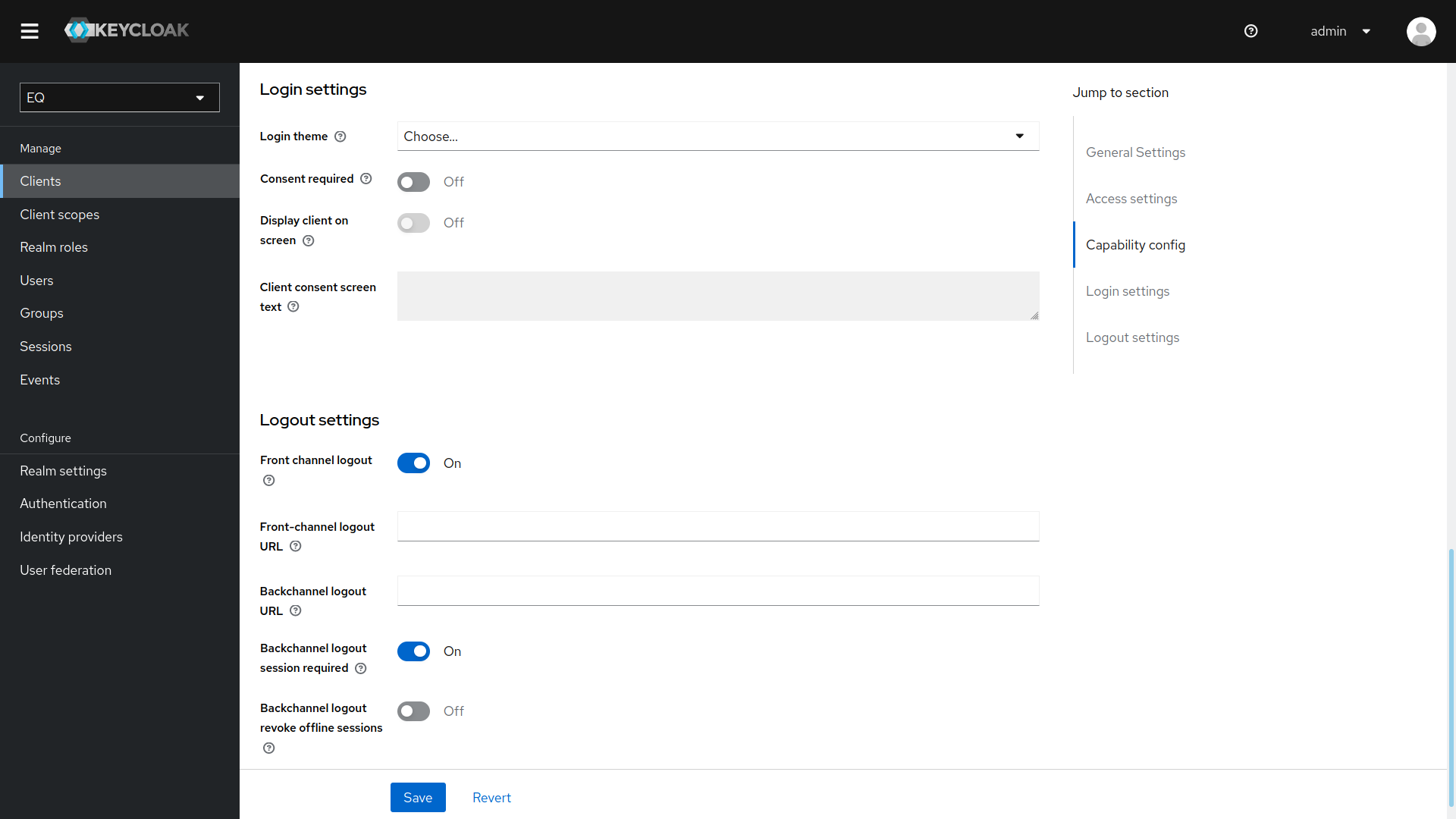

Jenkins client three

Jenkins client scopes

List of client scopes for jenkins.One can add some specific client scope in addition to the ones which are added from the realm.

Jenkins client scopes

Client scopes in realm

Here is the list of client scopes available to the clients in the realm.

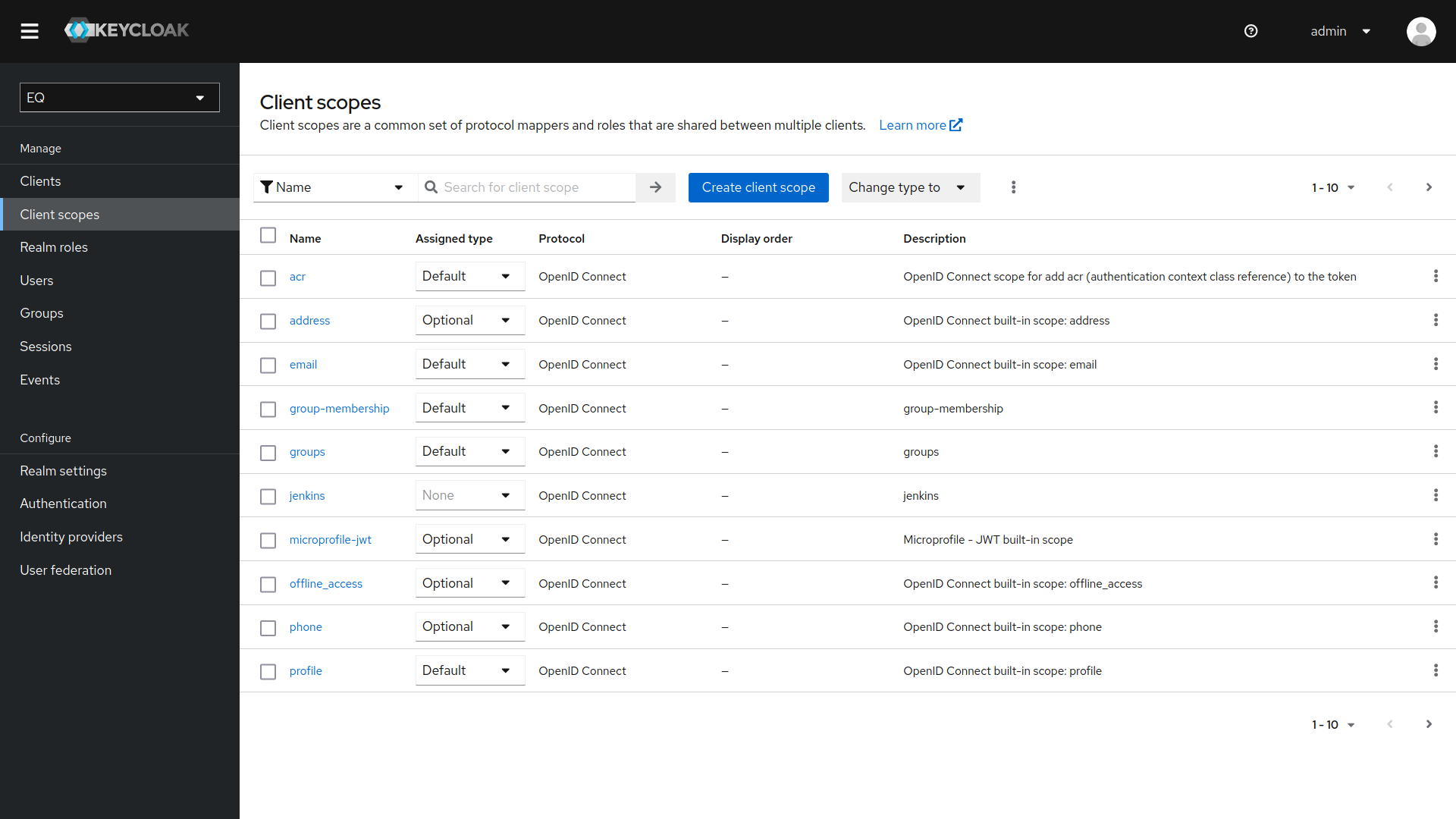

Client scopes

Group-membership client scope

Group-membership client scope should be added as:

Client scope group membership one

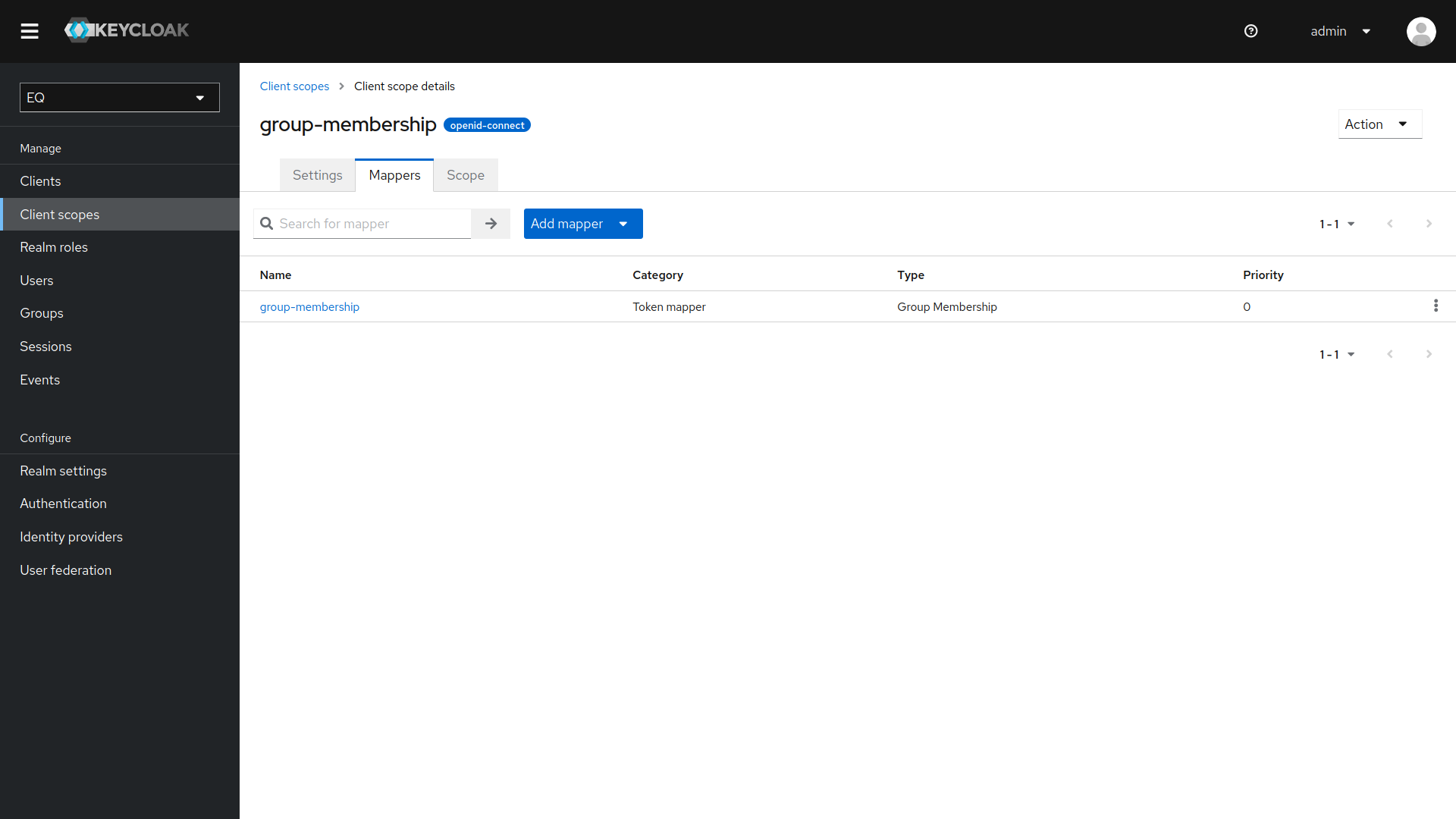

Client scope group membership two

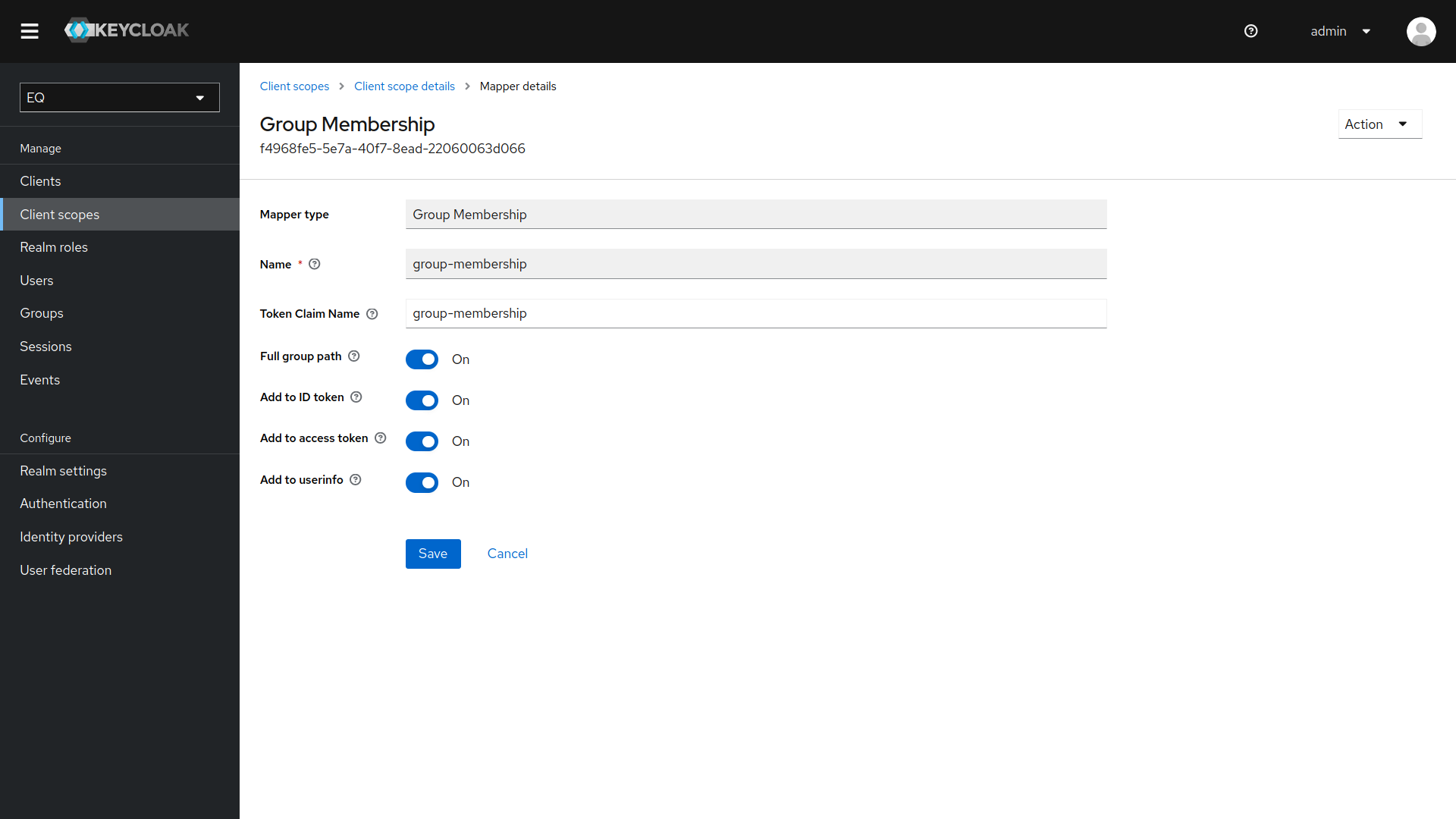

Client scope group membership three

Groups client scope

Groups client scope should be added as:

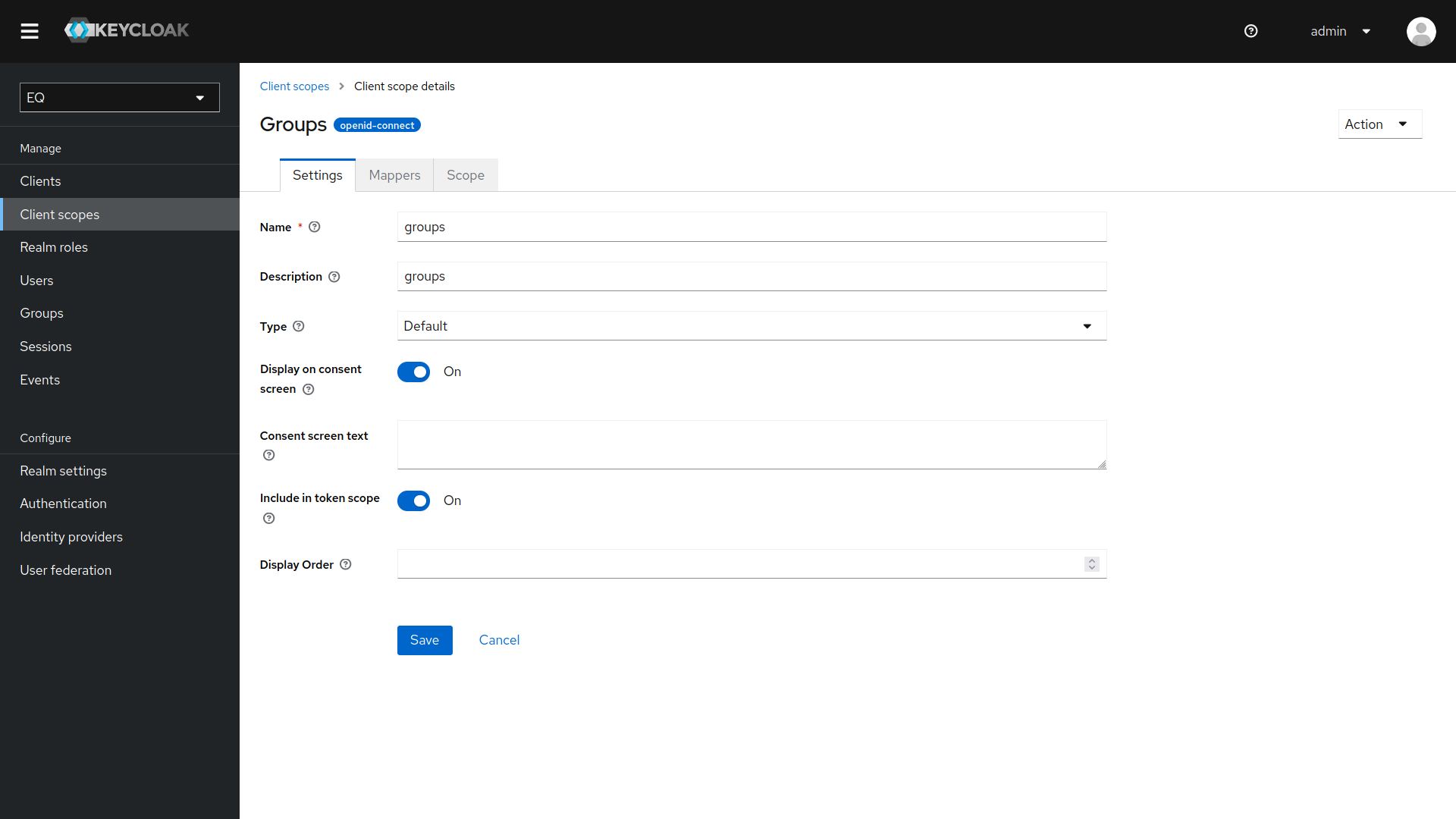

Client scope group one

Client scope group two

Client scope group three

Realm roles

Realm roles are created for clients which support it (e.g. jenkins).

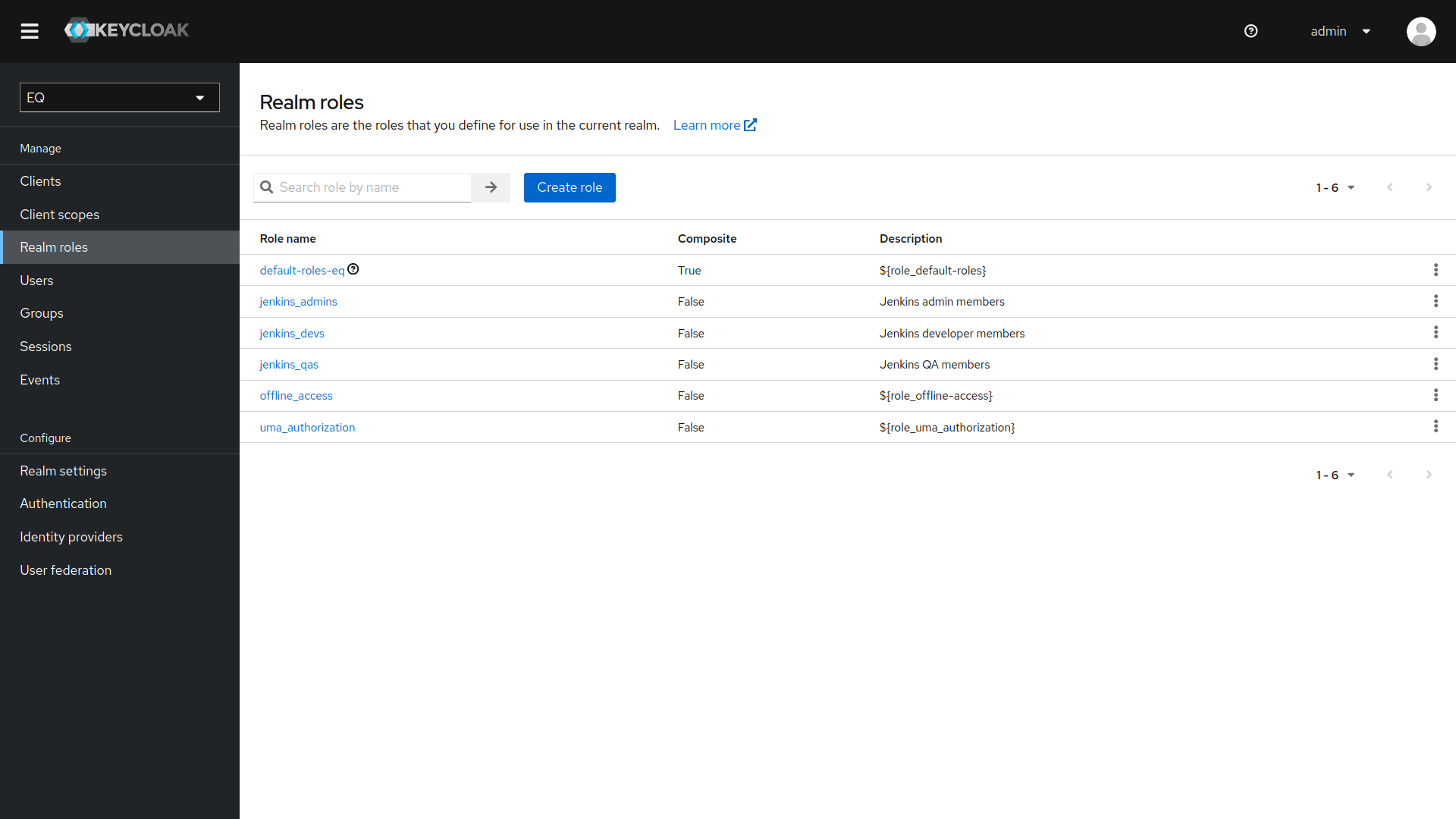

Realm roles

Groups in the realm

Some example groups are added as admins,devs,qas.Realm roles are assigned to the related groups.

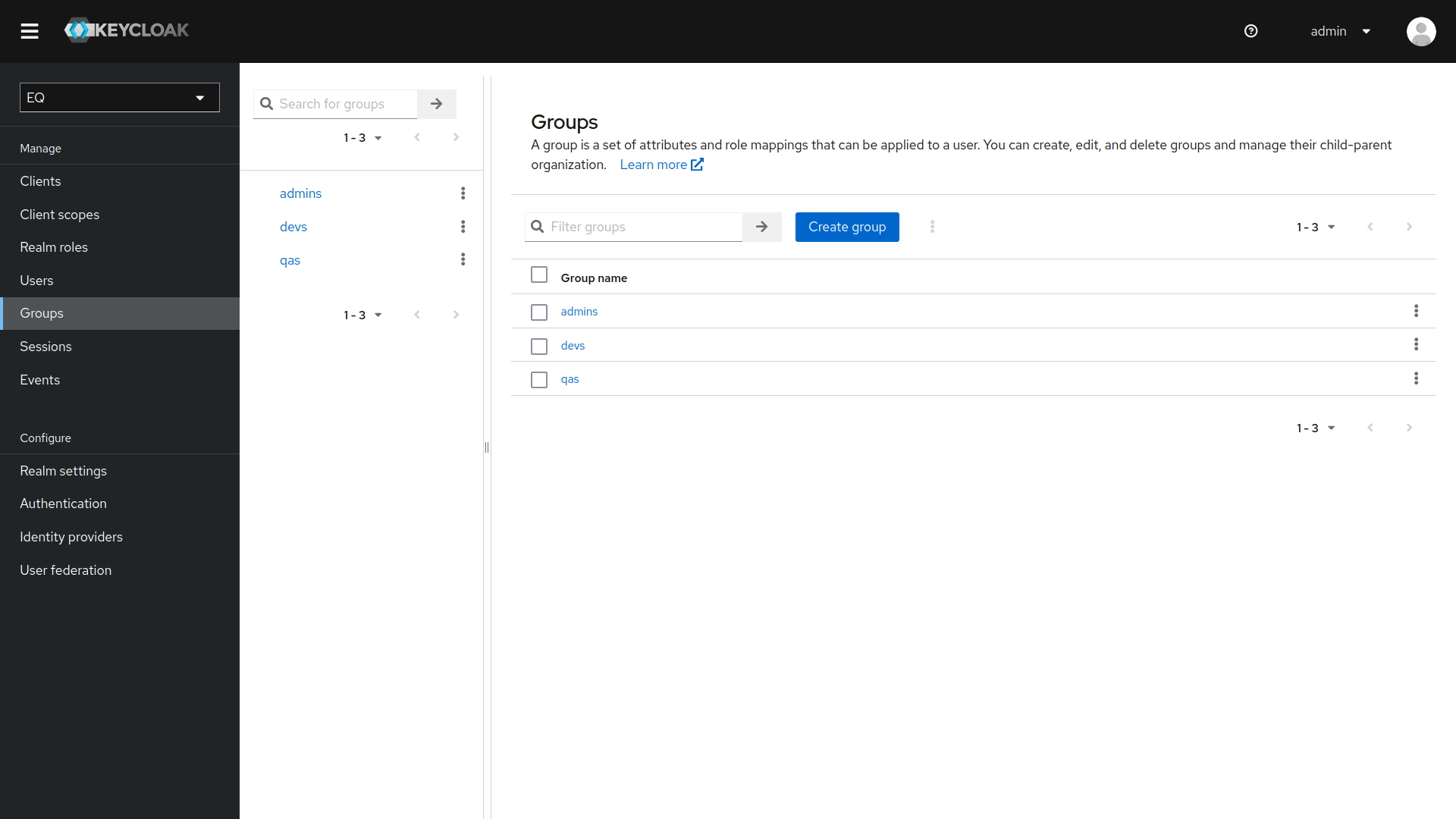

Groups one

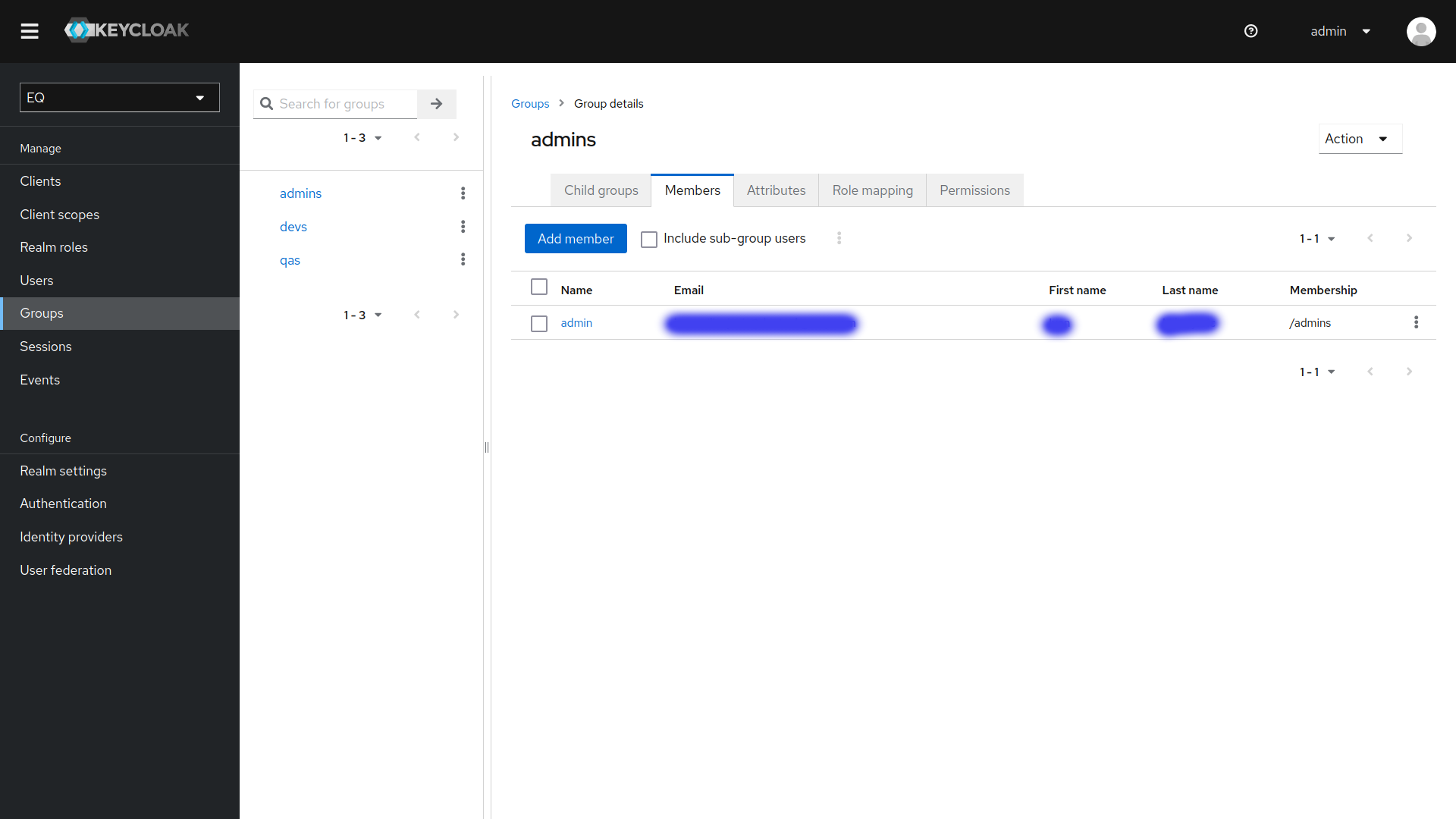

Groups two

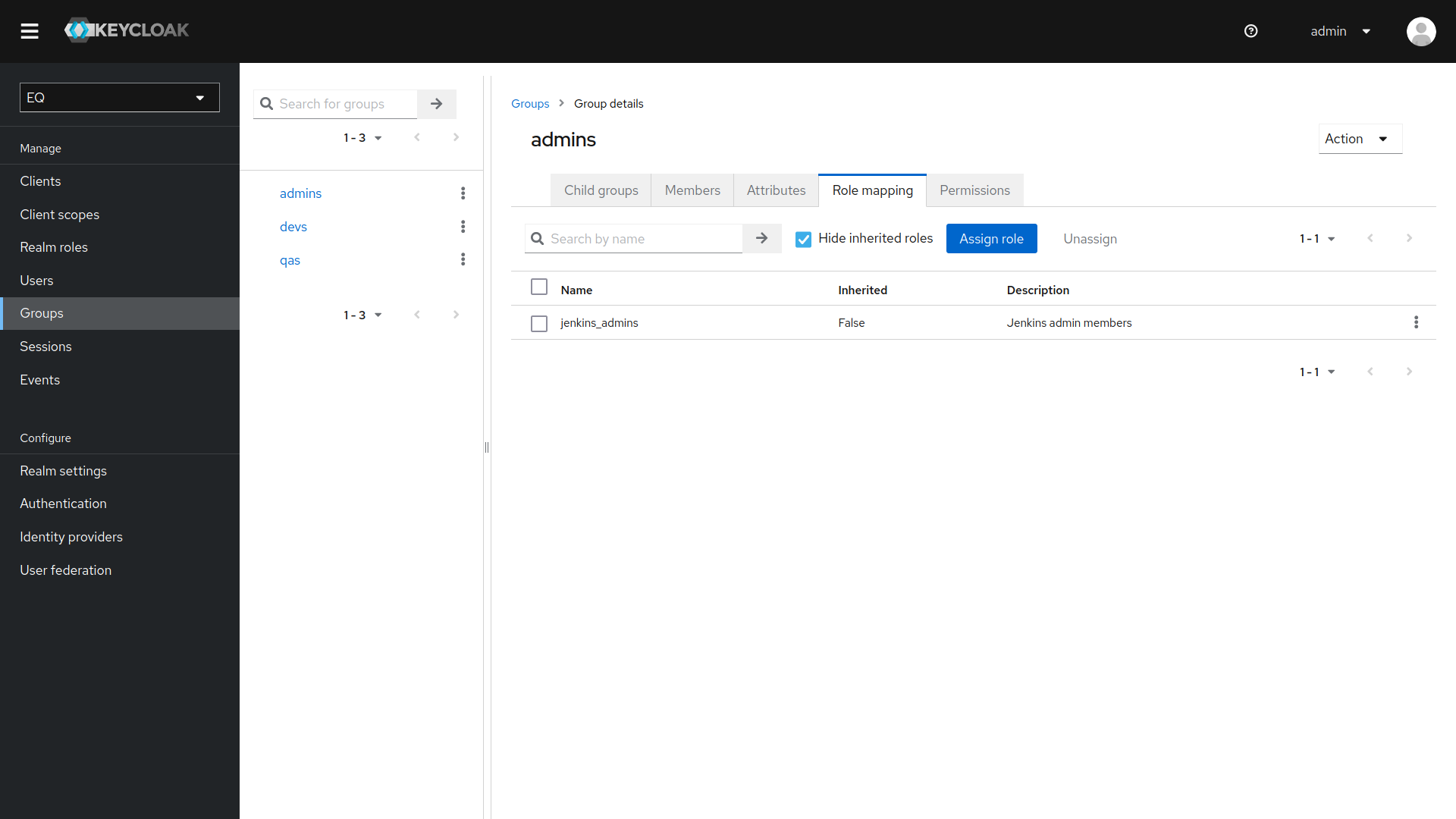

Groups three

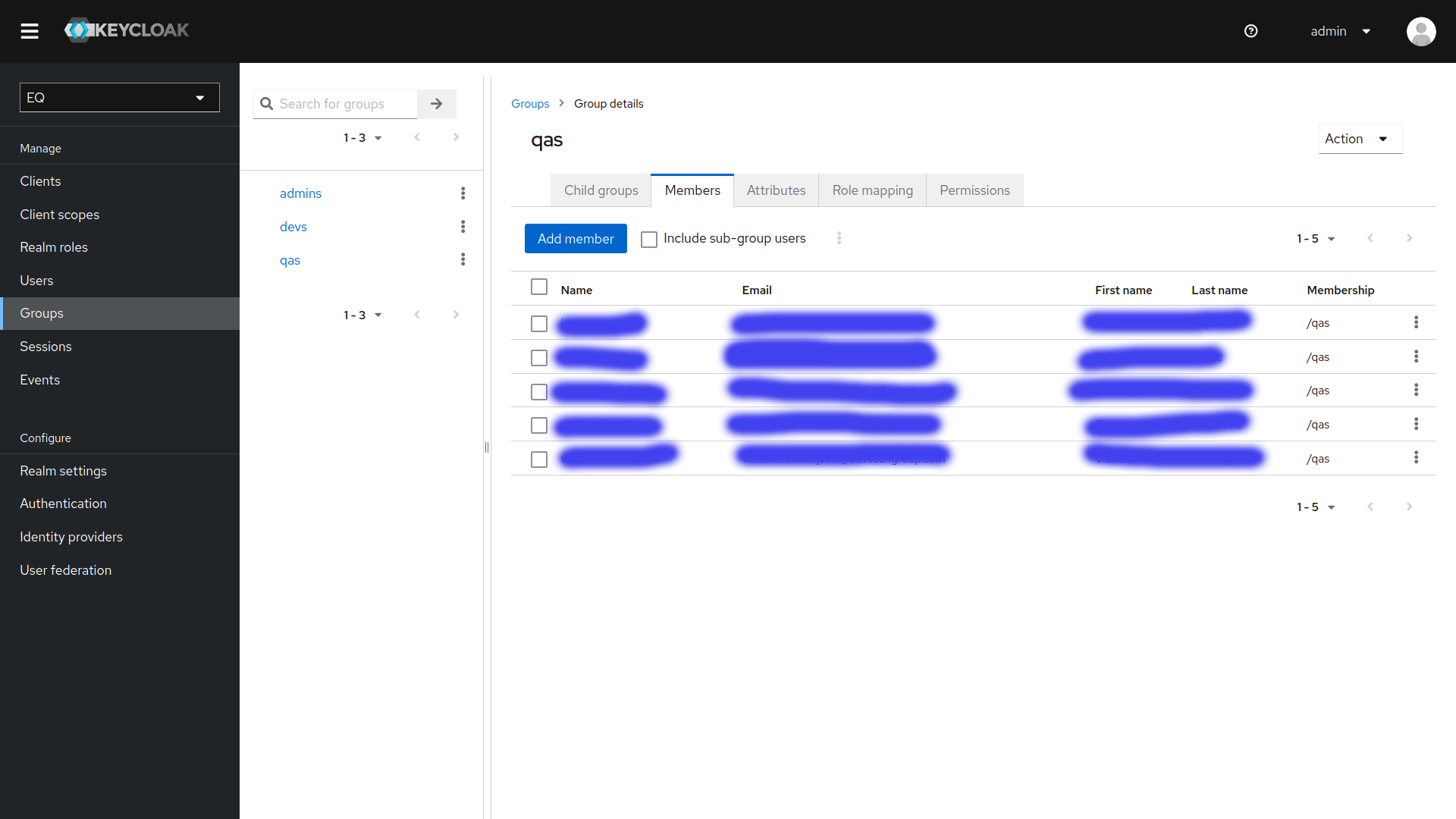

Groups four

Groups five

Old keycloak setup

On keycloak create realm and client as:

{
"id" : "af27f3af-ea50-452d-bc56-d28069cdbf29",
"clientId" : "jenkins",
"rootUrl" : "http://jenkins.computingforgeeks.com:8080/",
"adminUrl" : "http://jenkins.computingforgeeks.com:8080/",
"surrogateAuthRequired" : false,
"enabled" : true,
"alwaysDisplayInConsole" : false,
"clientAuthenticatorType" : "client-secret",
"redirectUris" : [ "http://jenkins.computingforgeeks.com:8080/*" ],
"webOrigins" : [ "http://jenkins.computingforgeeks.com:8080/" ],
"notBefore" : 0,
"bearerOnly" : false,
"consentRequired" : false,
"standardFlowEnabled" : true,
"implicitFlowEnabled" : false,
"directAccessGrantsEnabled" : true,
"serviceAccountsEnabled" : false,
"publicClient" : true,
"frontchannelLogout" : false,
"protocol" : "openid-connect",
"attributes" : {
"saml.assertion.signature" : "false",
"saml.force.post.binding" : "false",
"saml.multivalued.roles" : "false",
"saml.encrypt" : "false",
"saml.server.signature" : "false",
"saml.server.signature.keyinfo.ext" : "false",
"exclude.session.state.from.auth.response" : "false",
"saml_force_name_id_format" : "false",
"saml.client.signature" : "false",
"tls.client.certificate.bound.access.tokens" : "false",
"saml.authnstatement" : "false",
"display.on.consent.screen" : "false",
"saml.onetimeuse.condition" : "false"
},
"authenticationFlowBindingOverrides" : { },
"fullScopeAllowed" : true,
"nodeReRegistrationTimeout" : -1,
"defaultClientScopes" : [ "web-origins", "role_list", "profile", "roles", "email" ],
"optionalClientScopes" : [ "address", "phone", "offline_access", "microprofile-jwt" ],
"access" : {
"view" : true,
"configure" : true,
"manage" : true
}

In client “jenkins” select tab “Installation” - format “Keycloak OIDC JSON” - copy to clipboard.

[Optional] Create roles jenkins_admins/jenkins_readonly.If ldap is used those roles can be pulled from ldap and thus one doesn’t need to create them.

Install jenkins

Install java and setup jenkins.

yum install java-1.8.0-openjdk-devel -y
curl --silent --location http://pkg.jenkins-ci.org/redhat-stable/jenkins.repo | sudo tee /etc/yum.repos.d/jenkins.repo
rpm --import https://jenkins-ci.org/redhat/jenkins-ci.org.key
yum install jenkins mc vim -y
systemctl start jenkins
systemctl enable jenkins

Run jenkins as docker container

docker run -d -p 8080:8080 -p 50000:50000 jenkins/jenkins:lts

Install plugins

Install following plugins on jenkins:

  • OpenId Connect Authentication Plugin - it will be used for authentication to keycloak
  • Role-based Authorization Strategy - it will be used for role based auth with keycloak

Create Manage Roles

Goto Manage Jenkins->Manage and Assign Roles->Manage Roles->Global Roles - (if not present) add role “admin” with all checkboxes selected - SAVE. Goto Manage Jenkins->Manage and Assign Roles->Manage Roles->Global Roles - add role “read_only” with “Overall Read” selected - SAVE

Create Assign Roles

Goto Manage Jenkins->Manage and Assign Roles->Assign Roles - add group “jenkins_admin” to global roles and select “admin” - SAVE Goto Manage Jenkins->Manage and Assign Roles->Assign Roles - add group “jenkins_readonly” to global roles and select “read_only” - SAVE

Update auth and realm

Goto “Configure Global Security” and configure Security Realm following howto on https://plugins.jenkins.io/oic-auth/ and under Jenkins/Keycloak integration. Goto “Configure Global Security” and select “Authorization”: “Role-Based Strategy” - SAVE

Testing

You should be redirected now to the Keycloak login. Try to log in as admin with admin rights, and as named user with read only rights.

References

https://stackoverflow.com/questions/56042425/how-to-set-role-based-login-for-jenkins-in-keycloak
https://joostvdg.github.io/blogs/kubernetes-sso-keycloak/#sso-with-jenkins
https://www.janua.fr/mapping-ldap-group-and-roles-to-redhat-sso-keycloak/
